TRAILER WHEEL RIMS
We offer most common specification Trailer and Caravan wheel rims in 8” to 16” rim diameters. We cover both UK and EU fixings that meet trailer loading requirements from 500kg to 3,500kg for use in both both high and low speed applications.
STEEL TRAILER WHEEL RIMS
We offer off-the-shelf stock of common trailer wheel rims in both steel and alloy options. Steel wheels are normally more popular due to their reduced cost compared to alloy alternates. Our steel wheels are made out of high quality steel and will come with a painted finish. Each wheel comes with a limited 1 year manufacturers warranty. We are in the process of adding our trailer rim range to our online store so for now please make contact with our sales team to start you trailer wheel enquiry. We have the most common wheel sizes and bolt configurations available to purchase online including:
8" Rim Diameter:
2.50A x 8 H2 - 4 stud
3.00D x 8 H2 - 4 stud
5.50A x 8 H2 - 4 stud
7.00A x 8 H2 - 4 stud
10" Rim Diameter:
2.50 x 10 - 4 stud
3.50B x 10 H2 - 4 or 5 stud
6.00I x 10 H2 - 4 or 5 stud
8.50I x 10 H2 - 5 stud
12" Rim Diameter:
4.00B x 12 H2 - 4 stud
4.5J x 12 H2 - 5 stud
5.5J x 12 H2 - 5 stud
6J x 12 H2 - 5 stud
7.00I x 12 H2 - 5 stud
13" Rim Diameter:
4J x 13 H2 - 4 stud
4.5J x 13 H2 - 4 or 5 stud
5J x 13 H2 - 4 or 5 stud
6J x 13 H2 - 5 stud
14" Rim Diameter:
5J x 14 H2 - 4 or 5 stud
5.5J x 14 H2 - 4 or 5 stud
15" Rim Diameter:
5.5J x 15 H2 - 5 stud
6J x 15 H2 - 5 stud
16" Rim Diameter:
5.00F x 16 H2 - 5 stud
5J x 16 H2 - 5 stud
6J x 16 H2 - 6 stud
To enable us to quote you on trailer wheel rims we will need some key information including the wheel rim size and centre plate bolt configuration (number of bolt holes, centre bore hole diameter, PCD, offset), along with the application it is being used in and the vehicle make/model it will be used on. If this level of information is not known we recommend you consult any machinery dealers or manufacturers who may be able to provide you with the information for your vehicle, along with reading our 'Wheel Measuring Guide'. You can also submit your information using our 'Wheel Enquiry' form below to start a conversation with our sales team.
View our range of steel trailer rims here!ALLOY TRAILER WHEEL RIMS

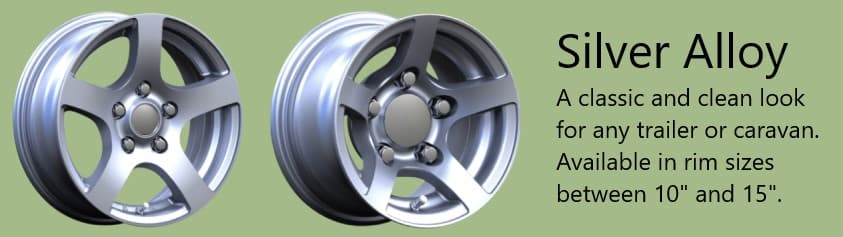

Alloy wheel rims are sometimes preferred on caravans or larger trailers due to their superior aesthetic appearance and better handling due to their reduced weight. Our alloy options are available in 10" - 15" wheel rim diameter sizes. They are made out of high quality aluminium and come with a limited 1 year manufacturers warranty. We have the most common wheel sizes and bolt configurations available to purchase online including:
Common Alloy Rims:
10": 6J x 10 H2 - 5 stud
12": 6J x 12 H2 - 5 stud
13": 5J x 13 H2 - 4 stud or 6J x 13 H2 - 5 stud
14": 5.5JJ x 14 H2 - 5 stud or 6J x 14 H2 - 4 & 5 stud
15": 6J x 15 H2 - 5 stud or 6.5J x15 H2 -5 stud
To enable us to quote you on trailer wheel rims we will need some key information including the wheel rim size and centre plate bolt configuration (number of bolt holes, centre bore hole diameter, PCD, offset), along with the application it is being used in and the vehicle make/model it will be used on. If this level of information is not known we recommend you consult any machinery dealers or manufacturers who may be able to provide you with the information for your vehicle, along with reading our 'Wheel Measuring Guide'. You can also submit your information using our 'Wheel Enquiry' form below to start a conversation with our sales team.
